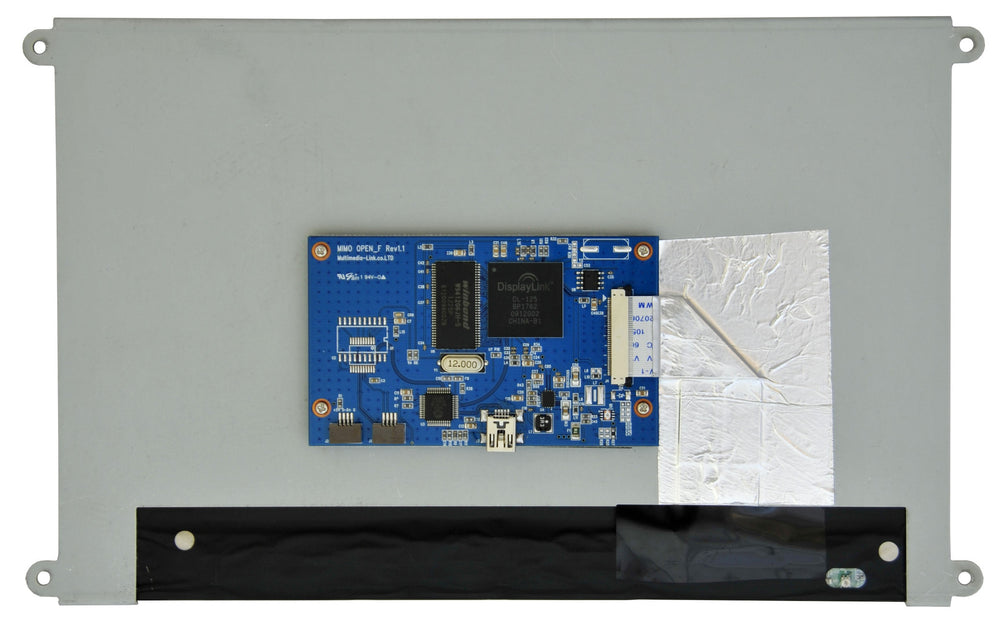

10.1" Open Frame Non-Touch Display, USB (UM-1080-OF)

£281.00
| /
description

10.1" Open Frame Non-Touch  1280x800 IPS Display, USB

Formerly known as (M101IPS-OF)

For the widest possible viewing angle and a beautifully crisp display rivalling those of more expensive competitor models, look no further than the Mimo UM-1080-OF small LCD monitor. This sleek, lightweight (only 2 pounds!) and affordable 10.1-inch USB LCD display is designed for maximum performance and minimal expense to our valued customers. It has been specially engineered to be easily installed in pre-existing enclosures and tight spaces, which is made possible by its slim and streamlined form. Additionally, it is produced in an open-framed, durable, rugged and thoroughly molded metal enclosure to protect it without being intrusive to existing working environments. This means that any replacements can be carried out without any external housing changes. Additionally, it supports rear 4-point mounting right out of the box. Regardless of whether you seek a powerful and intuitive device for hospitality, corporate, or entertainment purposes, you can’t do wrong with one that respects the environment around it.

Single-USB Power System and Multi-Orientation Support

Our high-performance UM-1080-OF small LCD monitors make use of meticulously optimized DisplayLink single cable USB-based power systems, meaning that a single cable can literally power the entire device as a means of reducing clutter and port wastage. The screen is designed for supporting portrait or landscape orientations to suit your needs as a user. The biggest allure of the UM-1080-OF USB LCD display, however, is its incredible 180-degree viewing angle — the widest in our line of displays.

The Mimo Vue HD Family

Model Features

UM-1080

Non-touch, USB video, desktop or wall mount display

UM-1080H

Non-touch, HDMI video, desktop or wall mount display

UM-1080C-G

Capacitive touch, USB video, desktop or wall mount display

UM-1080CH-G

Capacitive touch, HDMI video, desktop or wall mount display

UM-1080CP-B Capacitive Touch, USB Video, with HDMI Capture for conference rooms. Used in Google Meet kit and Logitech Premium Group Kits

UM-1080-OF

Non-touch, USB video, open-frame display

UM-1080H-OF

Non-touch, HDMI video, open-frame display

UM-1080C-OF

Capacitive touch, USB video, open-frame display

UM-1080CH-OF

Capacitive touch, HDMI video, open-frame display

Specifications

  • 10.1” diagonal, IPS, 16:10,
  • 1280x800 Resolution
  • Viewing angles: 85/85/85/85
  • Contrast ratio: 800:1
  • Luminance, White: 350 CD/m2
  • Operating Temperature 0 to 50c
  • Rear 4 point mounting for secure installation
  • DisplayLink technology delivers video and power over a single USB connection.
  • Lightweight, less than 2 pounds
  • Applications include secondary custom-facing display, retail POS environments, gaming, kiosks, and more
  • Mechanical drawings available upon request

As with all our monitors, the Mimo UM-1080-OF is compatible with Windows 7 and higher, Linux, and even Mac OS (Intel systems only for touch support, which require this driver). It is now also compatible with Chrome.

USB Extender Keeps You Connected

Our USB Extender can help you create a clutter-free working environment without sacrificing device accessibility or sufficient power. This is because it cleverly utilizes power over twisted pair functionality to reduce the number of wires needed to keep your devices in operating order. Now, you can count on a reliable operating environment regardless of how far away you are from a power socket.

Product Specs



Display Size
10.1 inches
Display Resolution
1280x800
Brightness
350cd/m2
Contrast Ratio
800:1
Response Time
14ms
Connections
High Speed USB 2.0
Dimensions
229.5mm x 149.1mm x 11.8mm
Operating Temperature
0 to 50c
Viewing Angles
85/85/85/85
Power Consumption
6 watts
Warranty
1 Year
Features
  • TAA Compliant
  • IPS Screen with nearly 180 degree viewing angles
  • CE FCC RoHS
  • Fully compatible with Windows, Linux and Mac OS-X
  • Adjustable brightness
  • Rear 4 point mounting for secure installation

Download this model's product sheet (PDF)

Download this model's 2D drawing (PDF)
