Mimo 720F Flex-Screen Mountable Touchscreen USB Monitor

802.00 NIS
| /
description

The UM-720F is is retired. Mimo Monitors has no supply available. The next generation replacement for the UM-720F is the UM-760RF (http://www.mimomonitors.com/products/mimo-um-760-7-display) or the UM-760CF (http://www.mimomonitors.com/products/mimo-um-760cf-7-display)

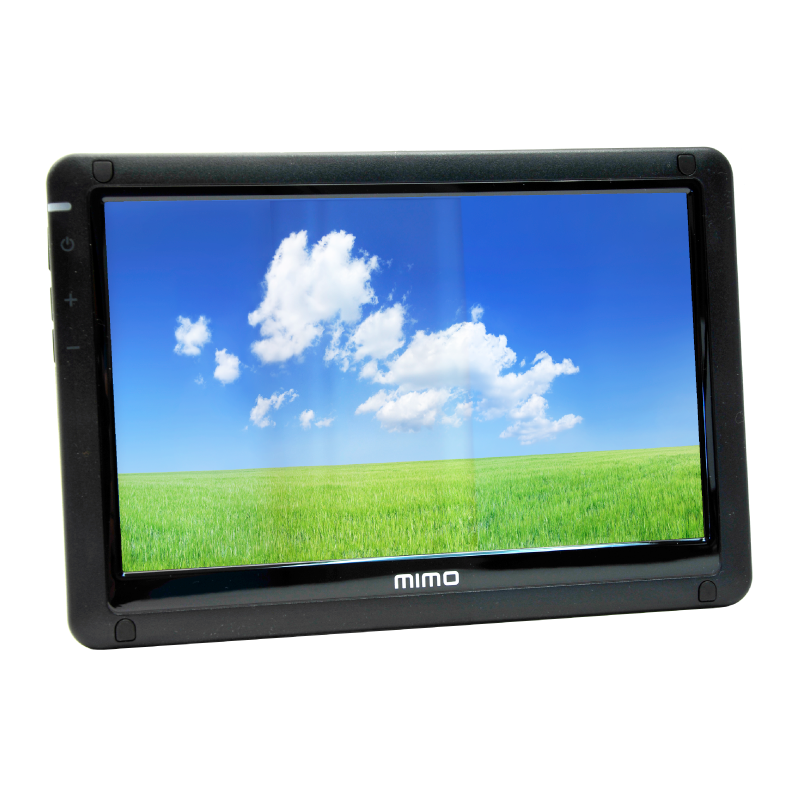

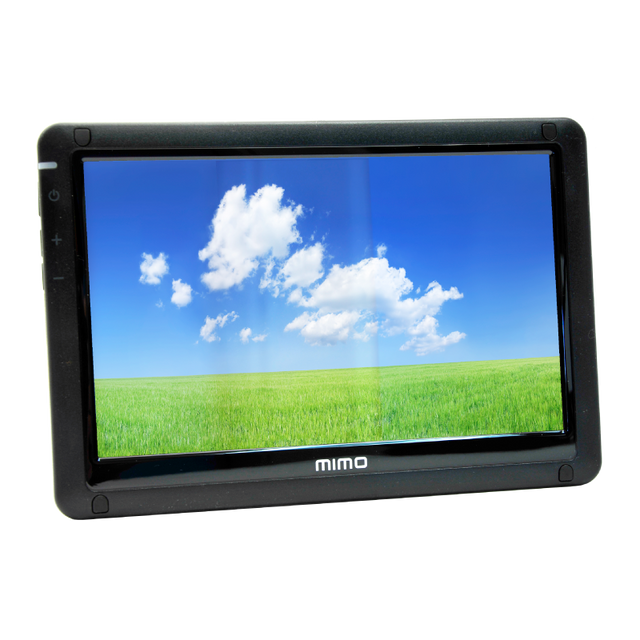

UM-720F "Flex-Screen" VESA 75 Compatible 7" USB Touch Screen Monitor

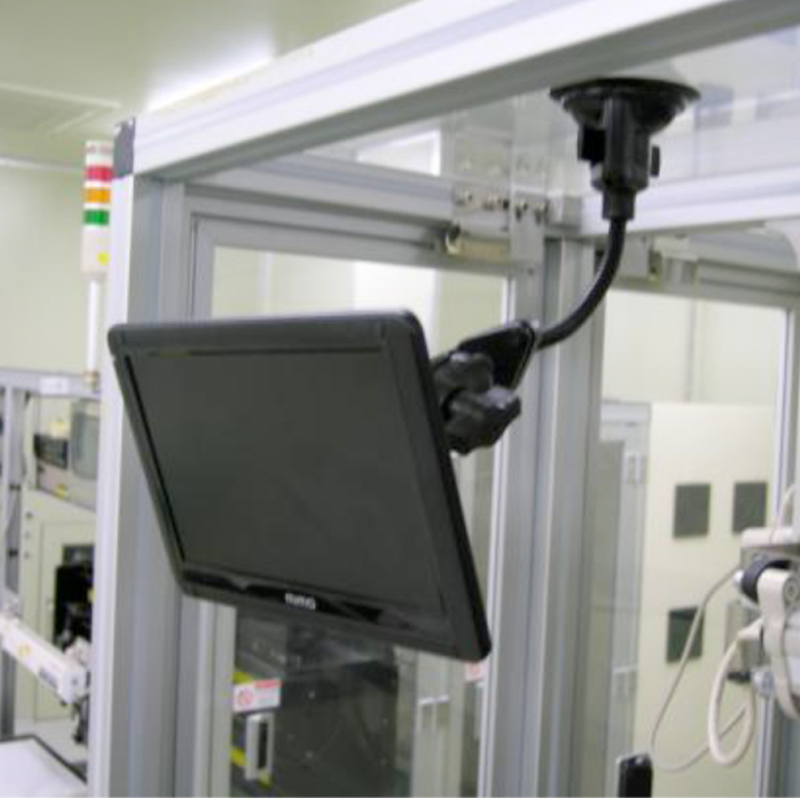

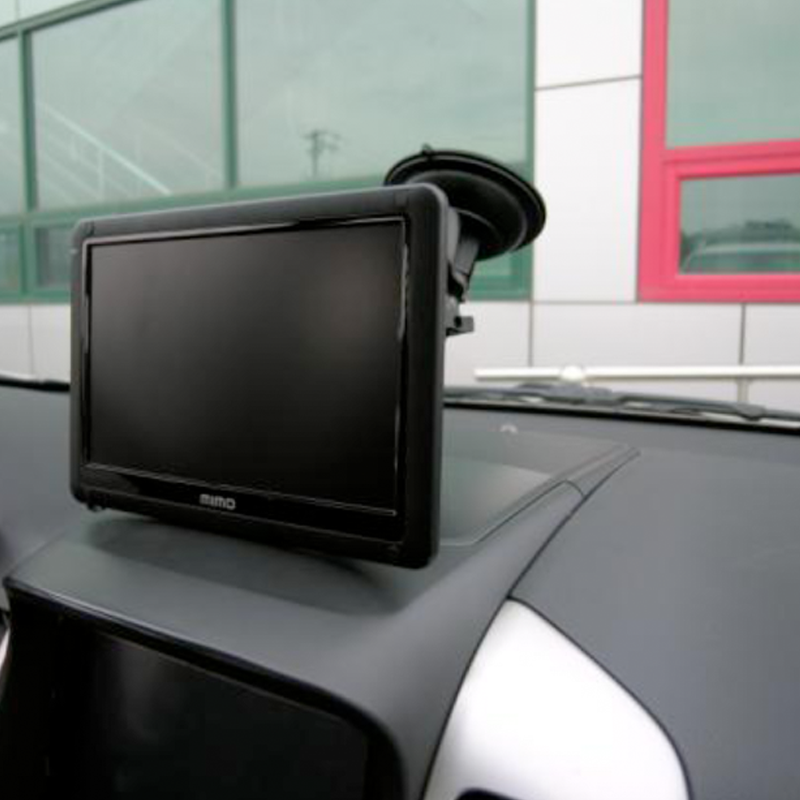

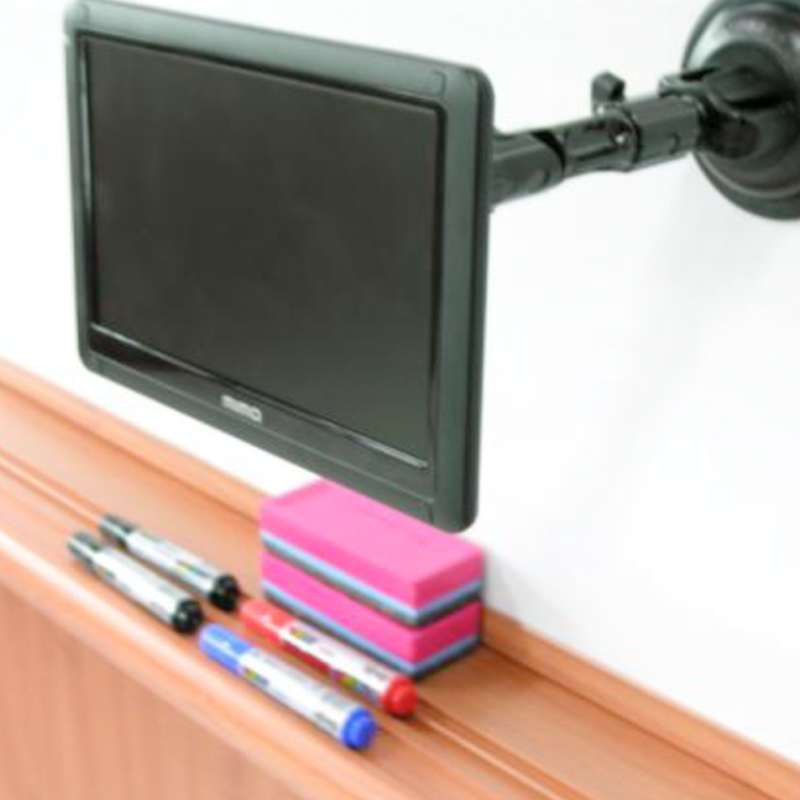

7” resistive touchscreen monitor in VESA 75 standard mount. Specifically designed to easily mount in commercial installations, wall brackets, telescoping arms, desktop displays, even auto seats and windshields, PLUS includes the same great touchscreen functionality as the 720S. The UM-720F touch monitor is designed to provide the most cost effective touch solutions for retail POS, industrial, hospitality and consumer markets.

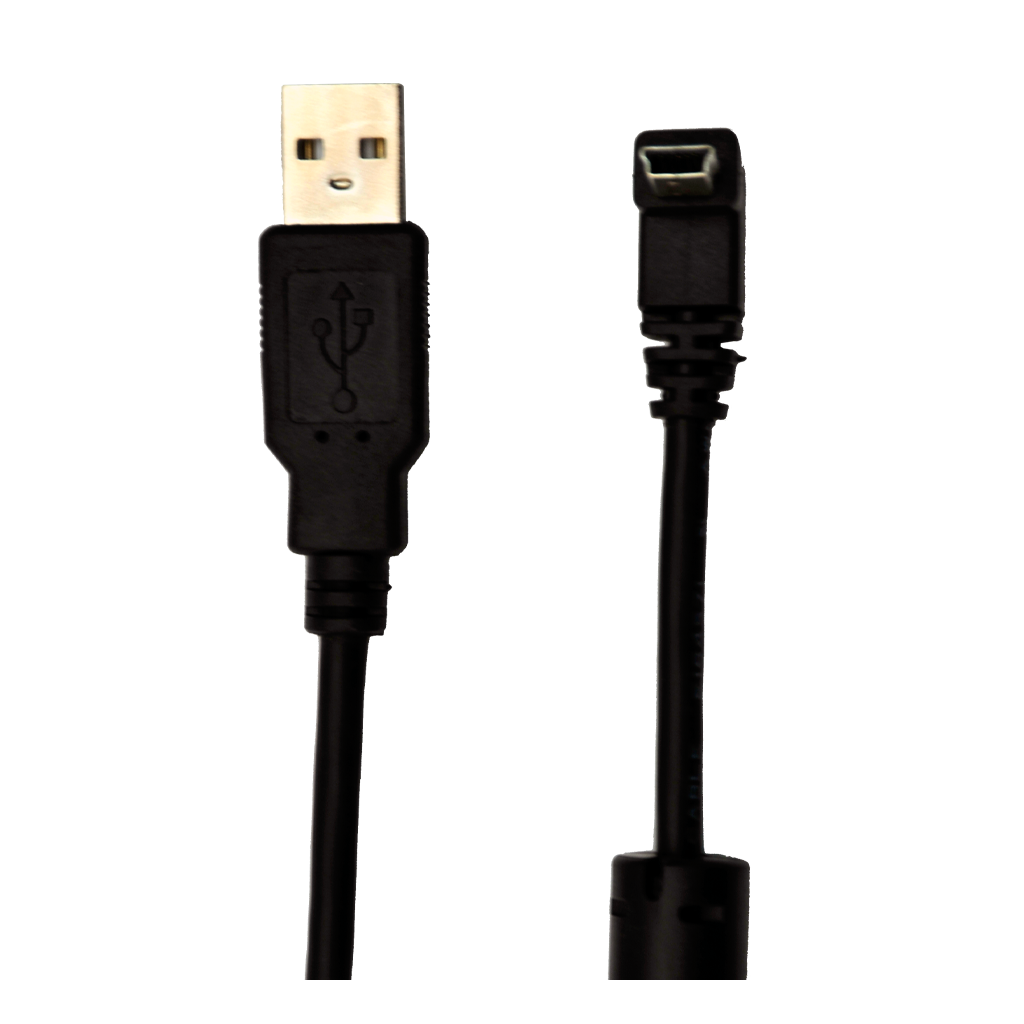

  • Utilizes DisplayLinkTM technology that provides video, touch and power over a single USB connection. No separate power supply to worry about
  • Perfect for End-Cap displays or secondary customer-facing display in retail POS environments
  • Designed for small screen applications such as embedded industrial control
  • Theoretically up to 127 screens can be connected for multi-user interactive applications

As with all our monitors, the Mimo 720F is compatible with Windows, Linux, and Mac OS.  Note to Mac OS users: requires additional purchase of $35 driver to activate touchscreen capability.

UM-760 Family

MODEL DESCRIPTION 2G REPLACEMENT
UM-760 Mimo 3G Non-Touch Slider, 1024x600 UM-710
UM-760R Mimo 3G Resistive Touch Slider, 1024x600 UM-720S
UM-760C Mimo 3G Capacitive Touch Slider, 1024x600 with a modern zero-bezel tablet-like design New
UM-760C-SMK 7" Capacitive Touch Display, USB with Speaker, Metal Back and Adjustable Brightness New
UM-760CH-SMK 7" Capacitive Touch Display, HDMI with Speaker, Metal Back and Adjustable Brightness New
UM-760-OF Mimo 3G Non-Touch Open Frame, 1024x600 UM-710-OF
UM-760RK-OF Mimo 3G Resistive Touch Open Frame, 1024x600 UM-720S-OF
UM-760R-OF NRFND - Mimo 3G Resistive Touch Open Frame, 1024x600 UM-720S-OF
UM-760C-OF Mimo 3G Capacitive Touch Open Frame, with a modern zero-bezel tablet-like design New
UM-760F Mimo 3rd Gen non-touch VESA New
UM-760RF Mimo 3G Resistive VESA Mount, 1024x600 UM-720F
UM-760CF Mimo 3G Capacitive VESA Mount, 1024x600 with a modern zero-bezel tablet-like design New

USB Extender

If a USB display is perfect for your installation, whether it is desk mounted or wall mounted, but you need the display a long distance from your computing device, check out our USB extender. (http://www.mimomonitors.com/products/mimo-usb-extender-102). The major advantage to this extender versus the competition, is that this extender uses Power over Twisted Pair to power the remote side from the source side. No longer do you need to route AC power at your table or wall installation.

Other 7” display options:

Same great touchscreen but in an innovative folding form factor – UM-720S

Display only (Non touch) foldable form factor – UM-710S

7” resistive touch display but with a detachable stand / base – Touch 2

Additional Accessories:

Mimo Stylus for resistive touchscreens

Raspberry Pi Support

Please visit this page for the 7" Monitors: http://www.mimomonitors.com/pages/using-mimo-with-raspberry-pi

Mac OS X Touchscreen Support

This driver is required for using the Mimo 720F with a Macintosh computer (Intel-based only) to support touchscreen functions.

Product Specs



Display Size
7 inches

Display Resolution
800x480

Brightness
350cd/m2

Contrast Ratio
400:1

Connections

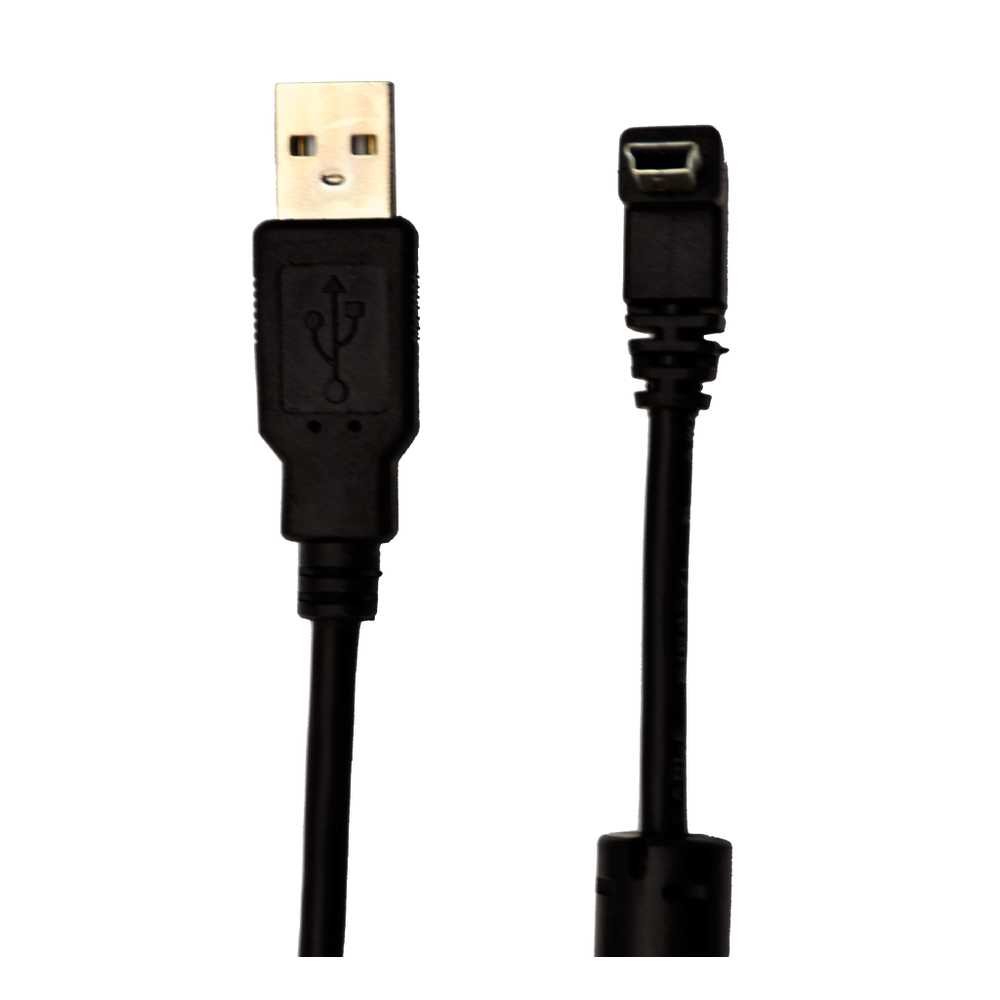

USB 2.0

Power Consumption
3.3W - 4.99W

Dimensions
7”x 5.25”x 1”(thickness)

Features
  • Resistive Touchscreen

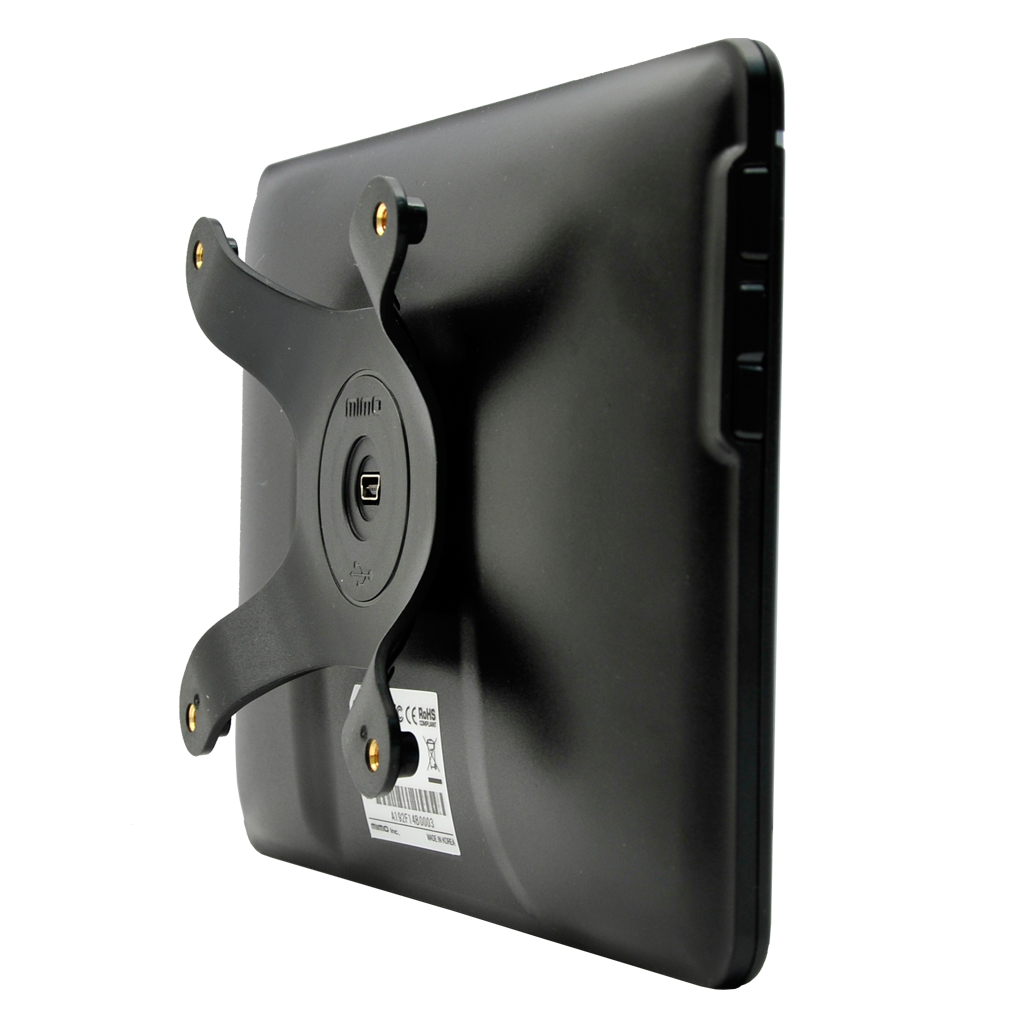

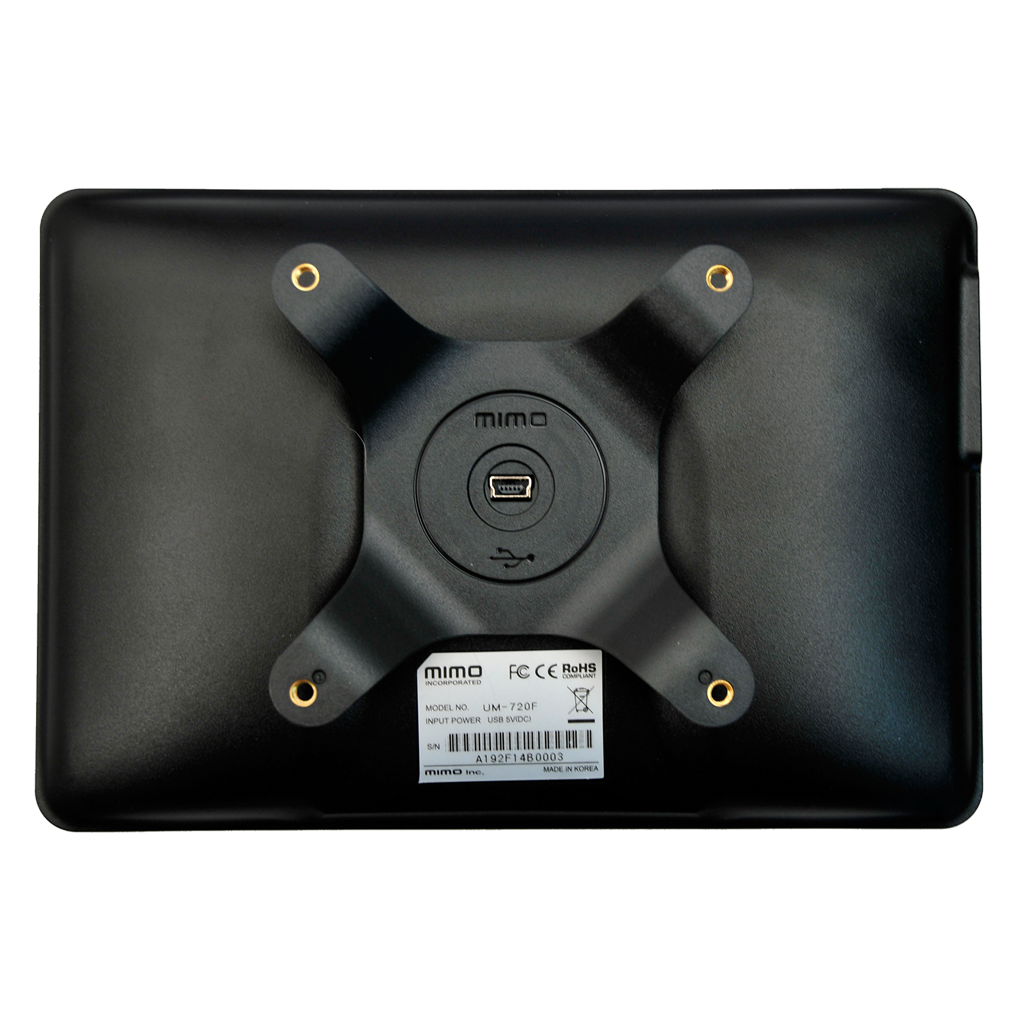

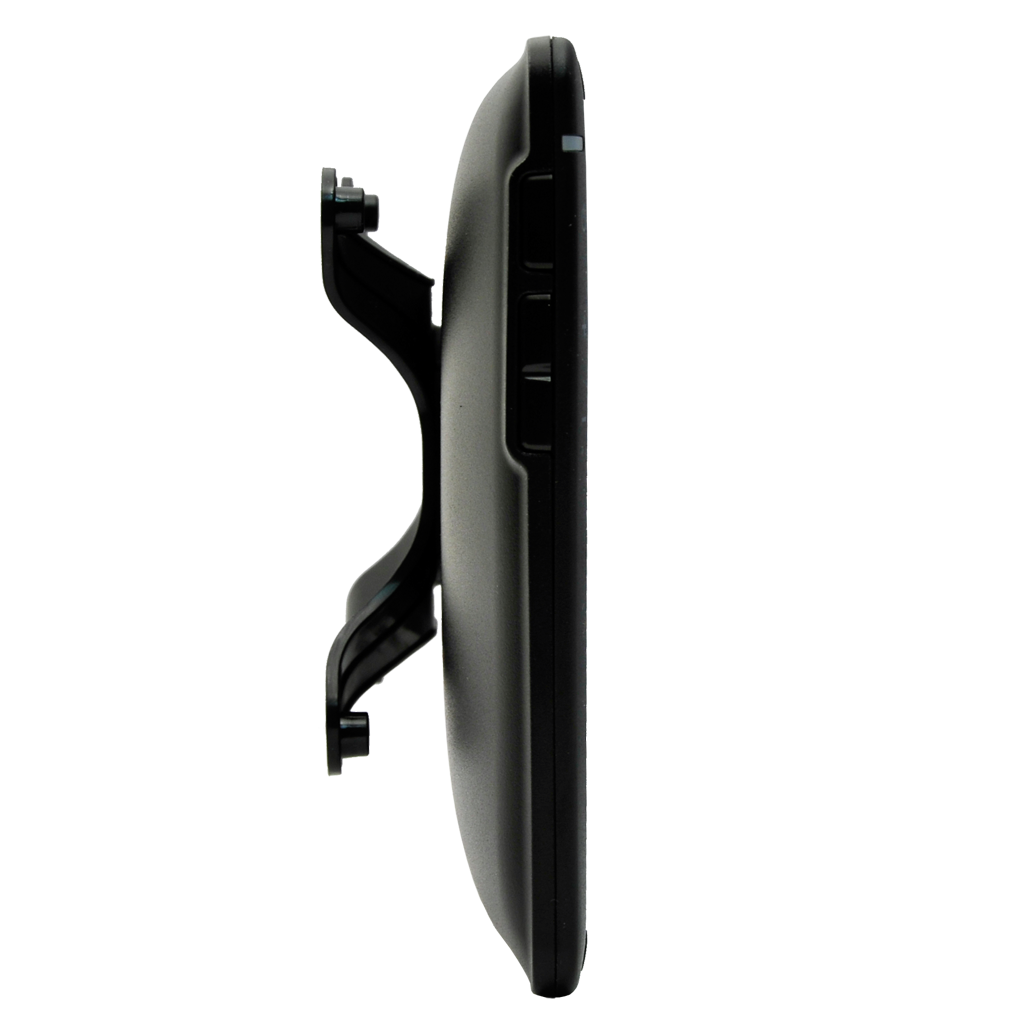

  • VESA 75 Mount Compatible
  • CE FCC RoHS
  • Drivers for Windows XP, Vista, Vista 64-bit, 7, 8, 8.1, 10 included
  • Drivers for Mac OS X not included in box, download them from our support page. We recommend downloading the latest drivers from DisplayLinkTM regardless of your platform for best performance



  • California Residents: warning WARNING: This product can expose you to chemicals including Styrene and DINP, which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov .
