Mimo UM-760 7” Display

MSRP $149.99

7” USB Portable Slider Non-Touch Display

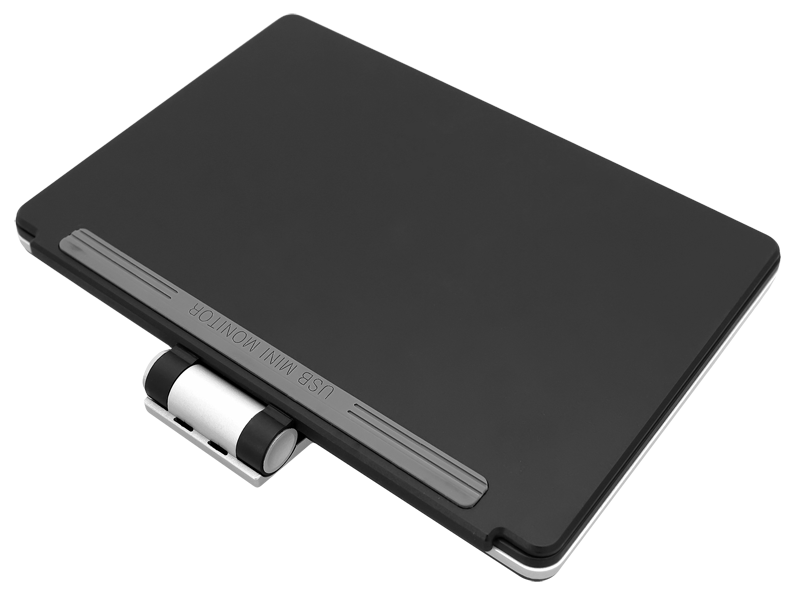

Still the coolest form factor ever...7” Monitor in a compact, foldable footprint. Ultra-portable, weighs less than a pound and measures less than an inch thick when folded. The UM-760 monitor is designed to provide the most cost effective solutions for consumer, retail POS, and hospitality markets.

  • Utilizes DisplayLinkTM technology that provides video and power over a single USB connection. No separate power supply to worry about

  • Ultra-portable integrated stand and cover, weighs less than 1 pound

  • Perfect for people on the go, laptop/netbook users, graphic designers and anywhere a mini secondary touch screen is useful

  • Can be applied as a secondary customer-facing display in retail POS environments

    Applications:

    • POP/POS
    • Secondary screen for productivity
    • Gaming and entertainment
    Light industrial shop-floor automation • Digital Signage
    • Video Conferencing

    As with all our monitors, the Mimo 760 is compatible with Windows, Linux, and Mac OS.



The UM-760 Series

MODEL DESCRIPTION 2G REPLACEMENT
UM-760 Mimo 3G Non-Touch Slider, 1024x600 UM-710
UM-760R Mimo 3G Resistive Touch Slider, 1024x600 UM-720S
UM-760C Mimo 3G Capacitive Touch Slider, 1024x600 with a modern zero-bezel tablet-like design New
UM-760-OF Mimo 3G Non-Touch Open Frame, 1024x600 UM-710-OF
UM-760R-OF Mimo 3G Resistive Touch Open Frame, 1024x600 UM-720S-OF
UM-760C-OF Mimo 3G Capacitive Touch Open Frame, with a modern zero-bezel tablet-like design New
UM-760F Mimo 3rd Gen non-touch VESA New
UM-760RF Mimo 3G Resistive VESA Mount, 1024x600 UM-720F
UM-760CF Mimo 3G Capacitive VESA Mount, 1024x600 with a modern zero-bezel tablet-like design New



USB Extender

If a USB display is perfect for your installation, whether it is desk mounted or wall mounted, but you need the display a long distance from your computing device, check out our USB extender. The major advantage to this extender versus the competition, is that this extender uses Power over Twisted Pair to power the remote side from the source side. No longer do you need to route AC power at your table or wall installation.



Additional Accessories:

Small Case specifically designed for 7” screens



Raspberry Pi Support

Please visit this page for the 7” Monitors: http://www.mimomonitors.com/pages/using-mimo-with-raspberry-pi

Product Specs

Display size
7 inch
Display Resolution
1024 x 600 (WSVGA) LCD
Brightness
250cd/m2
Contrast Ratio
700:1
Pixel Pitch
0.15 (H) x 0.15 (V)
Viewing Angle
75/75/70/75(L/R/U/D)
Connections
USB
Power Consumption
4W
Dimensions
7”x 5.25”x 1”(thickness)
Features
Utilizes Displaylink for power and video over single USB connection
Non-Touch
Surface treatment: Hard coating (3H), anti-glare



Download this model's product sheet (PDF)
